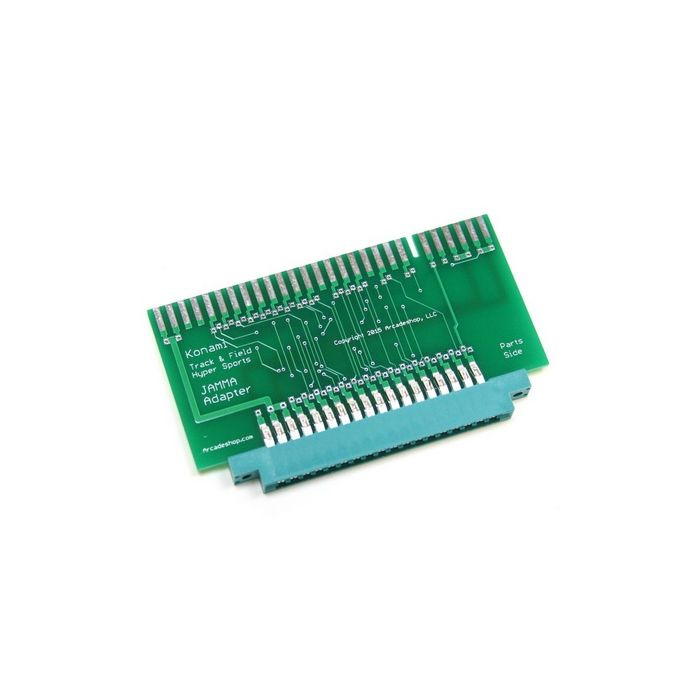

Track & Field/Hypersports Upright JAMMA Adapter

Track and Field/Hyper Sports PCB adapter will allow an original PCB to work in a JAMMA wired cabinet. Note:  The JAMMA adapter is designed for the upright cabinet only. Here are the pinouts for the control panel buttons: Player 3 Start = JAMMA pin 18 = (Player 1 Up)Player 4 Start = JAMMA pin "V" = (Player 2 Up) 1st Player Jump = JAMMA pin "23" = (P1 button 2) 1st Player Run 1 = JAMMA pin "22" = (P1 button 1) 1st Player Run 2 = JAMMA pin "24" = (P1 button 3)  2nd Player Jump = JAMMA pin "A" = (P2 button 2) 2nd Player Run 1 = JAMMA pin "Z" = (P2 button 1) 2nd Player Run 2 = JAMMA pin "B" = (P1 button 3)

In stock

SKU
JA-TRKFLD
$29.00

Description / Track & Field/Hypersports Upright JAMMA Adapter

Track and Field/Hyper Sports PCB adapter will allow an original PCB to work in a JAMMA wired cabinet.

Note:  The JAMMA adapter is designed for the upright cabinet only.

Here are the pinouts for the control panel buttons:

Player 3 Start = JAMMA pin 18 = (Player 1 Up)
Player 4 Start = JAMMA pin "V" = (Player 2 Up)

1st Player Jump = JAMMA pin "23" = (P1 button 2)
1st Player Run 1 = JAMMA pin "22" = (P1 button 1)
1st Player Run 2 = JAMMA pin "24" = (P1 button 3)

2nd Player Jump = JAMMA pin "A" = (P2 button 2)
2nd Player Run 1 = JAMMA pin "Z" = (P2 button 1)
2nd Player Run 2 = JAMMA pin "B" = (P1 button 3)
