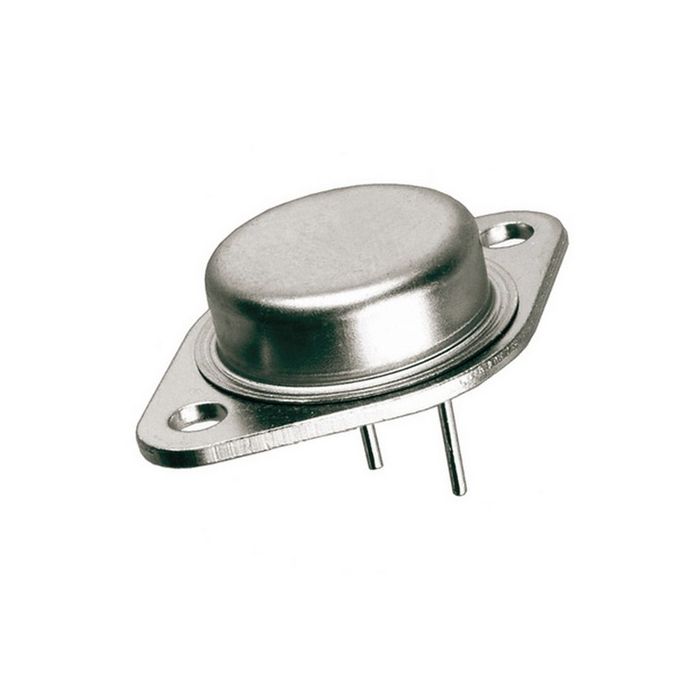

2N3055 Transistor
2N3055 NPN Power Transistor.Used on:Atari Audio Regulator power supply boardsGottlieb System-1 Driver boardsGottlieb System-80 Driver boardsCross Reference: Gottlieb XO301 & XO-301Features:Collector-Emitter Volt (Vceo): 60VCollector-Base Volt (Vcbo): 100VCollector Current (Ic): 15.0A hfe: 25-70 @ 4000mA Power Dissipation (Ptot): 115WCurrent-Gain-Bandwidth (ftotal): 2.5MHzType: NPNPackage: TO-3
In stock
- SKU
- 2N3055
$4.95
Description / 2N3055 Transistor
2N3055 NPN Power Transistor.
Used on:
- Atari Audio Regulator power supply boards
- Gottlieb System-1 Driver boards
- Gottlieb System-80 Driver boards
Cross Reference: Gottlieb XO301 & XO-301
Features:
- Collector-Emitter Volt (Vceo): 60V
- Collector-Base Volt (Vcbo): 100V
- Collector Current (Ic): 15.0A
- hfe: 25-70 @ 4000mA
- Power Dissipation (Ptot): 115W
- Current-Gain-Bandwidth (ftotal): 2.5MHz
- Type: NPN
- Package: TO-3
